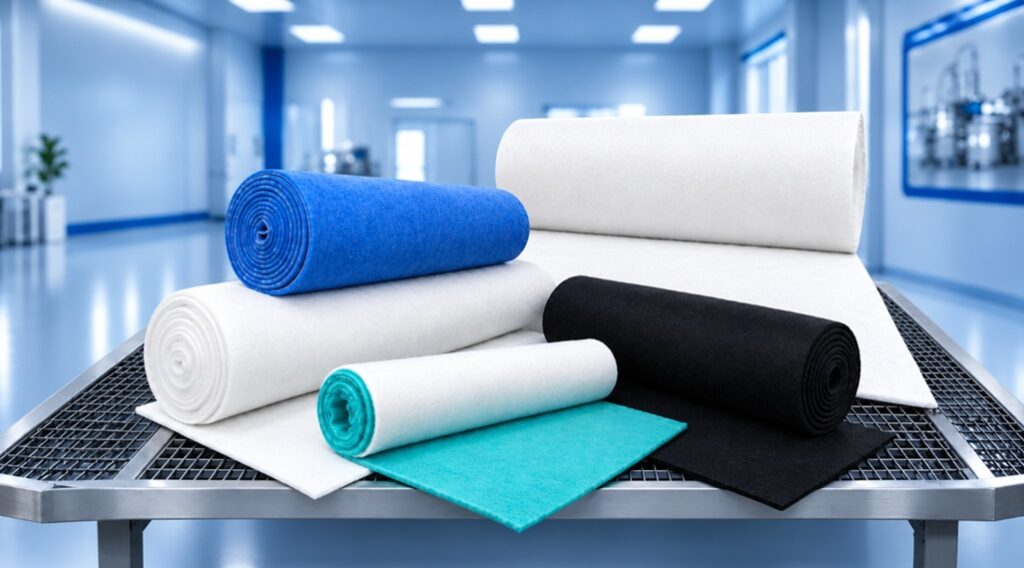

GN Air Filter Media
Model & Specifications
| Filter Class | G2 | G3 | G4 | G5 | |
|---|---|---|---|---|---|
| Model | GN 150 | GN 250 B/W | GN 280 | PA 50 FG | GN 600 G |
| Thickness (mm) | 8-10 | 18-20 | 18-20 | 50-60 | 22 |
| Average Arresstance (%) | 70-75 | 85 | 80-85 | 90 | 96 |
| Initial Pressure Drop (Pa) | 54 | 59 | 59 | 10 | 10 |
| Rec. Final Resistance (Pa) | 250 | 250 | 250 | 150 | 400 |
| Roll Size (m) | 2 x 20 | 2 x 20 | 2 x 20 | 2 x 20 | 2 x 20 |
| Colour | White | Blue/White | White | Green/White | White with woven scrim |
| Max. Operating Temperature (ºC) | 100 | 100 | 100 | 100 | 100 |
| Washability | Yes | Yes | Yes | No | No |
GN Air Filter Media Description
GN filter media consist of 100% thermally bonded polyester with selected synthetic fibers through an exclusive bonding technology. The media has low resistance to airflow and high dust holding capacity. Applicable to spray-paint system, pre-filter in paint spray cabins, industrial ventilation systems, kitchen hoods, and air conditioning units. Available in rolls of 2m and in pre cut slices.
Types of Air Filter Media Construction
- Synthetic / Polyester: Air Filters, Inc. synthetic bulk media shall be 100% non-woven polyester fibers, bonded together with a flame retarding agent which forms a high loft of resilient fibers. Available in either single or multi-ply grade and is dry or treated with a non-toxic, non-migratory, odorless adhesive that is incorporated into the media. Each grade of synthetic media is specifically engineered for a variety of dust loading applications.
- Fiberglass: Air Filters, Inc. fiberglass bulk air filter media consists of a continuous filament fiberglass of graduated density to ensure depth loading. The air leaving side of the media incorporates a skin backing which supports the media and creates a final filtration stage. All fiberglass media, except for the Paint Arrestor media which is dry, shall be treated with a non-toxic, non-flammable, odorless adhesive.

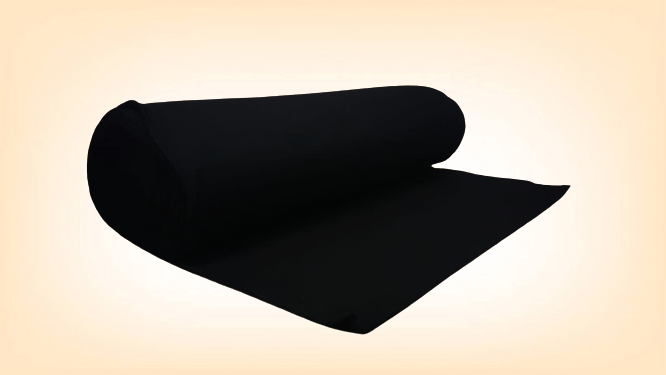

- Carbon Rolls: Air Filters Inc. carbon rolls are made of non-woven polyester and are impregnated with finely ground activated carbon. This media is ideal for use in non-vented applications such as range hoods, air cleaners, room air-conditioners, or anywhere you are looking to remove odors.
